Description

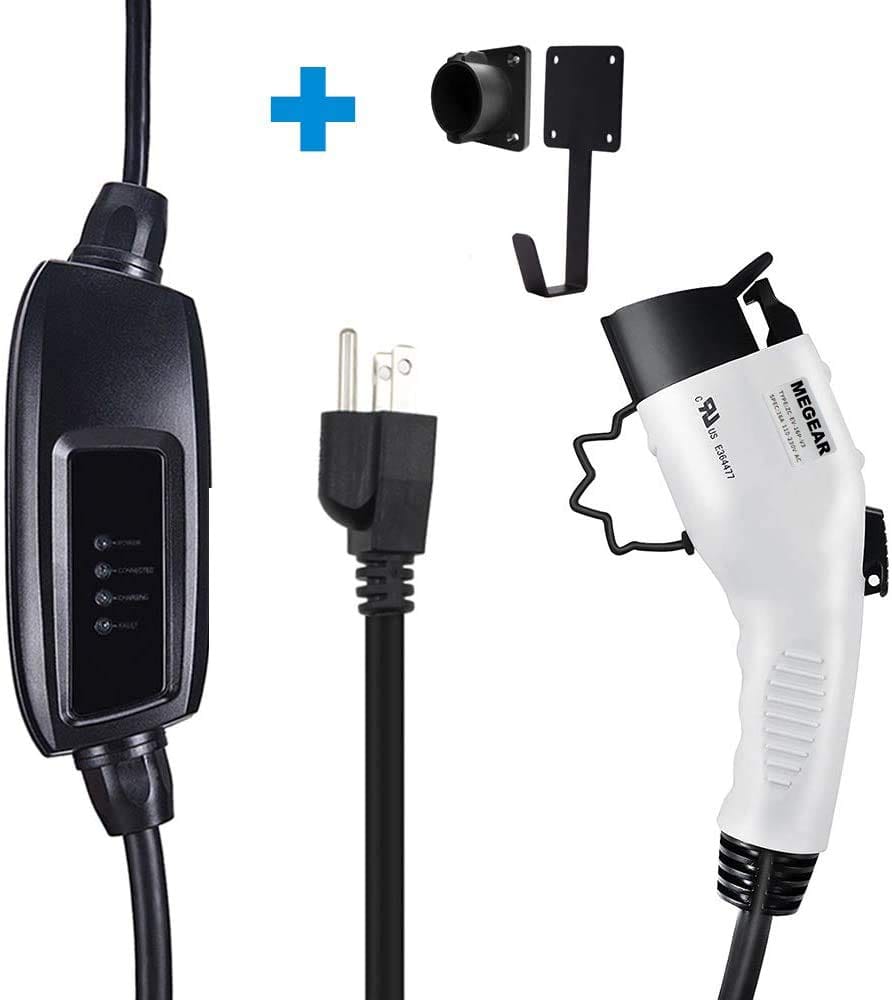

16A CHARGING WITH NEMA 5-15 PLUG: The EV charging stations need no assembly – just plug in to your existing NEMA5-15 or 5-20 receptacle or install a 5-15R or 5-20 socket, plug in and start charging.
VERSATILE VEHICLE COMPATABILITY: The plugs are compatible with all major EV automakers and multiple power sources: a Dryer, RV-type or regular wall outlet with adapters.
FASTER CHARGING SPEEDS: With level 1 charging, most electric vehicles will charge up to 8 miles per hour. Megear’s level 1 EVSE features 110V, 16 Amp charging and is up to 2x faster with a 110 volt outlet than your car’s original charger, which means you can spend more time heading out for fun and adventure and less time waiting around.

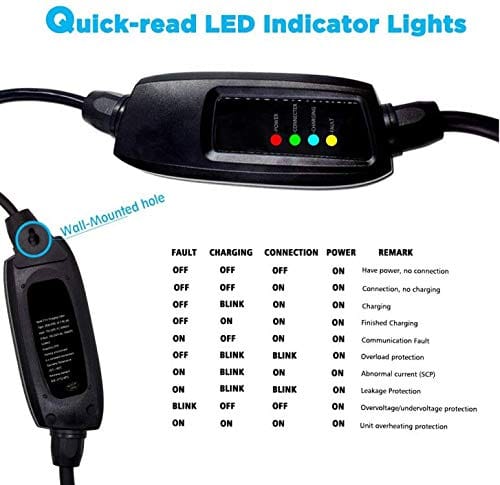

MULTIPLE PROTECTION: The EVSE providing lightning-proof, leakage, overvoltage, overheat, IP55 rating waterproof, UL94V-0 rating flame resistance and overcurrent protection for your safety, and features control box with LED charge status indicators
PROFESSIONAL AFTER -SALES: A Local customer service team to offer life-time hassle-free technical support, and 12 Months warranty. If anything is not to your complete satisfaction, simply reach out to Megear and they will make it right!
All products come with a Money Back Guarantee, subject to Amazon’s Terms & Conditions.
Manufacturer: Megear
Brand: Megear
Item Weight: 7.17 pounds
Package Dimensions: 16.06 x 12.13 x 5.16 inches
Is Discontinued By Manufacturer? No
Manufacturer Part Number: Megear
Vehicle Service Type: Compatible with all major Electric Vehicles which meet with the J1772 standard. The equipment can be used for charging with multiple outlets with different adapters.
See Price…
Your lithium ion battery will last longer over it’s lifetime trickle charging at 120v overnight. This 16 amp “faster” charger will charge your battery in two-thirds of the time, without shortening the life-span of your battery. Higher amp charging can shorten the life of you battery by as much as 10% of the expected life of the battery. Never charge immediately after driving.., let the battery cool off.., then charge. Heat is the enemy of a lithium ion battery. This cable works perfect right out of the box.
It works fine with a Honda Clarity or a BMW I3, as well as all oher major Electric Vehicles which meet with the J1772 standard, and you can now get a full charge in about 5-6 hours as opposed to the previous 18-20 that the factory charger took. Also, this plug Neme 10-30 can plug into a dryer outlet so you may not have to install a new outlet for 240volts in the house, potentially saving you money on installingof a new outlet. Could be an Economic choice?
Excellent Protection Performance:
110V AC 16A
1.76KW
-22°F to 122°F(Operating temperature)
Recommend Indoor-use
UL recognized component (E364477)
Applied Materials:
Case material: thermoplastic (flame retardant grade UL94-0)Pin: copper alloy, silver & thermoplastic on the top
Part Standards:

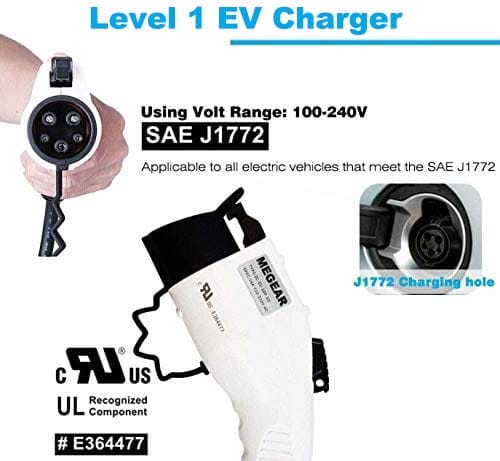

Charging plug meets SAE J1772 2010 standard, Power plug meets NEMA5-15 standard, Control box meets SAE J1772 2010 control principle

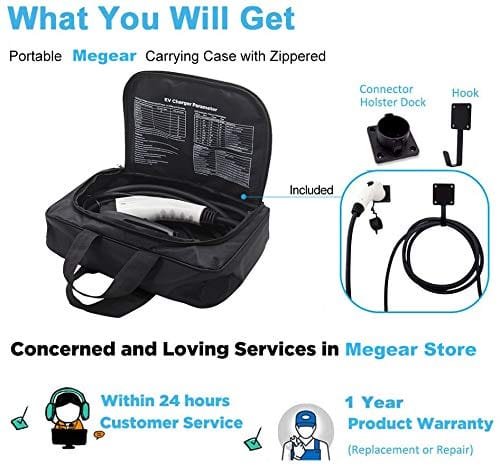

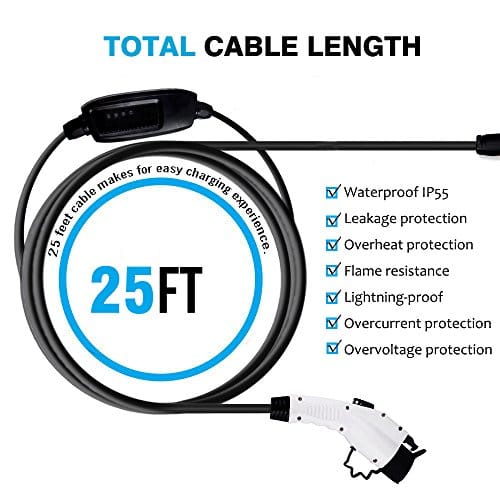

Charger Cord Length: 25 feet for EV Plug to Plug (Diameter: 0.472 inches) A hook and a dock are included.
Excellent Protection Performance
Protection grade IP55 Leakage protection (restart recovery) Over-voltage protection, Under-voltage protection (self-checking recovery) Lightning protection
MEGEAR Level 1 EV Charger with NEMA 5-15 Plug
MEGEAR Level 2 EV Charger with NEMA 10-30 Plug
MEGEAR Level 2 EV Charger with NEMA 6-20&NEMA 5-15 Plug
MEGEAR Level 2 EV Charger with NEMA 14-30 Plug
MEGEAR Level 2 EV Charger with N14-50 Plug
Charging Level:
Level 1 Charging
Level 2 Charging
Level 1 & 2 Charging
Max AC Charging Currents:
16 Amp
Max Power Outputs:
120V x 16A = 1.92kW
240V x 16A = 3.84kW
240V x 16A = 3.84kW
240V x 16A = 3.84kW
240V x 16A = 3.84kW
Charger Lengths:
25 Feet
Waterproof Level:
IP55
IP55
Socket:
NEMA 5-15
NEMA 10-30
NEMA 6-20 & NEMA 5-15
NEMA 14-30
Circuit Breaker:
18A
What You Need To Pay Attention To When Using A Level 1 EV Charger:
1. Check Your Socket Circuit Breaker or GFCI Socket
This EV Charger’s working current is 16A. Please check your breaker whether more than 16A. A good choice is the 18A or 20A circuit breaker. Otherwise, it could trip your breaker if the breaker max Amp is lower than 16A.

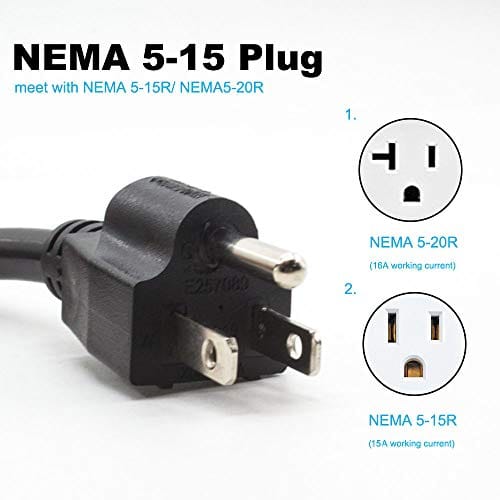

2. Check Your Socket Type Whether NEMA 5-15/5-20 And Check the Wire Gauge Of Socket
The NEMA 5-15 plug can fit with NEMA 5-15 and NEMA 5-20 socket. The way to check socket type is according to words was lettered in outlet or you can compare the outlet with our cartoon. DON’T use this charger if your socket wired with 16/3C or 18/3C cable.
3. Warning – Fully plug into your socket when using!
When using electric products, you need to fully plug into the socket so that metal plug fork can completely connect the socket. If not, it will burn out socket because the bad connection.
